    Control panel for electric wood railroad kit analog edition

    Code: 131/2 131/3 131/4 131/5 131/6 131/7 131/8 131/9 131/10 131/11 Choose variant
    control panel
    €4 €6 €7 €8 €9 €2 €3 €4 €5 €6 from €2
    On stock On stock On stock On stock On stock On stock On stock On stock On stock On stock Choose variant
    Variant

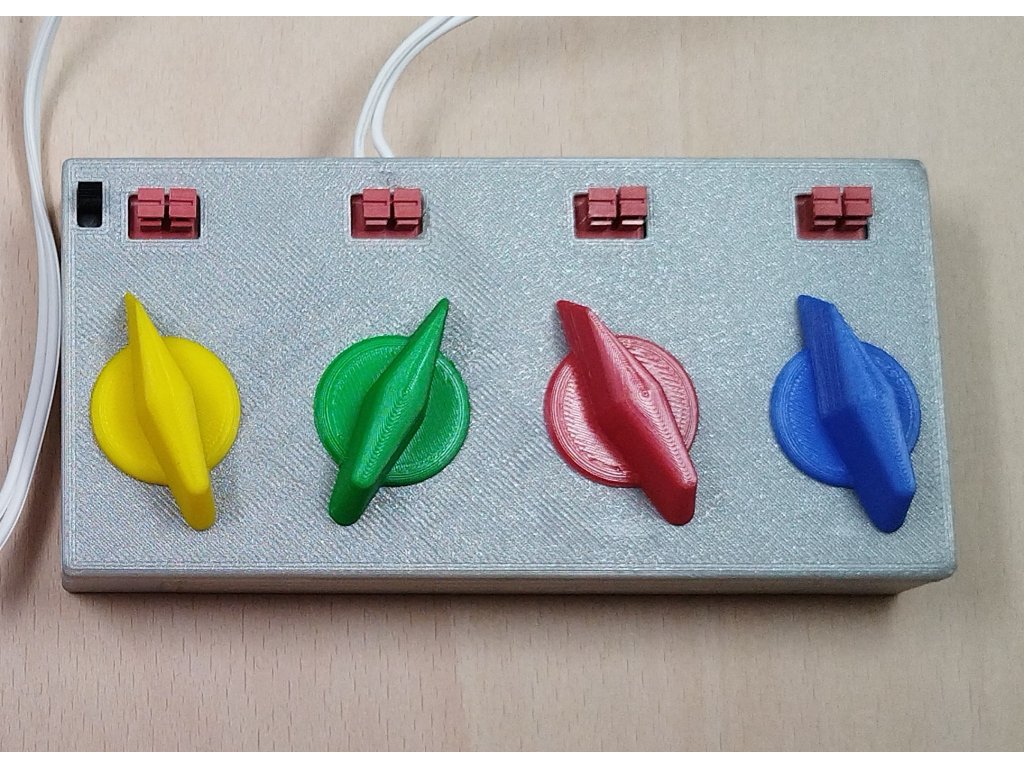

    This kit contains all non 3D printable components for analog control panel for electric turnouts, barriers and signals for wood railroad.

    Typical size is 4 channels.

    Detailed information

    Product detailed description

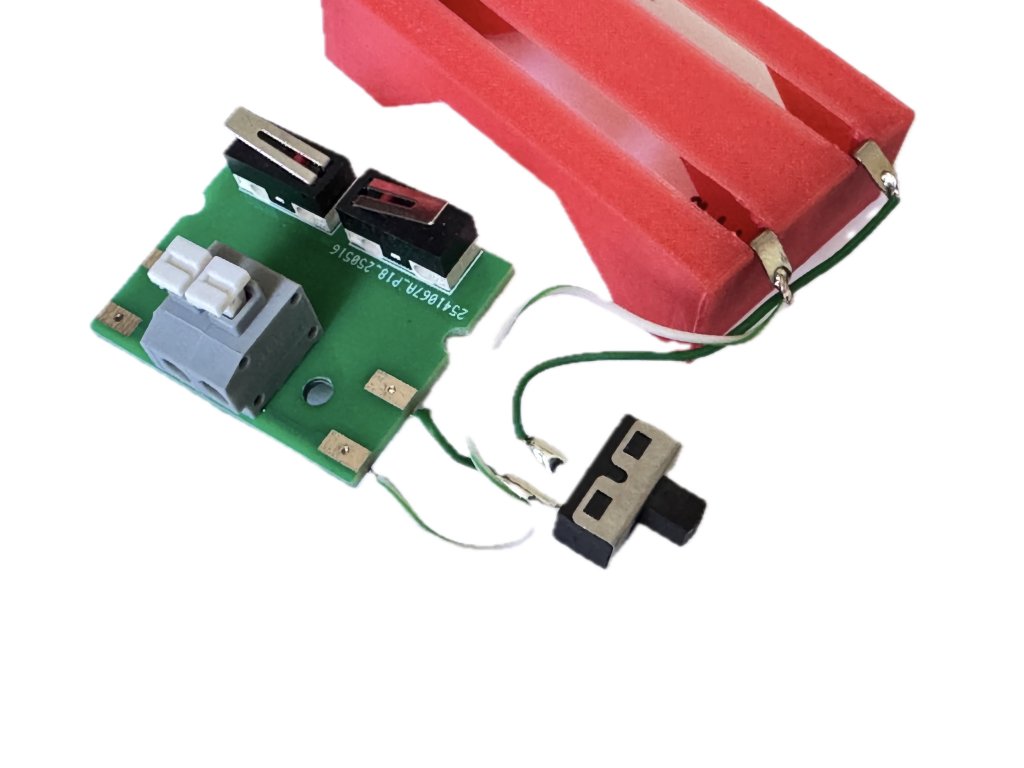

    You can choose PCBs and use your own components. Or you can choose complete set.

    Each set contains :

    • battery holder pins - 2 pairs
    • 2 battery wires
    • 1 M3 melt-in nut
    • 1 M3 bolt
    • 1 Slide switch
    • 4 screws 2.5x10

    For each channel:

    • PCB
    • 2 microswitches
    • 1 terminal connector
    • 2 screws 2.5x10



    This kit does not contain 3D printed parts.You have to print them yourself or use 3D print service. You can download them here   https://www.thingiverse.com/thing:7117276.
